Description

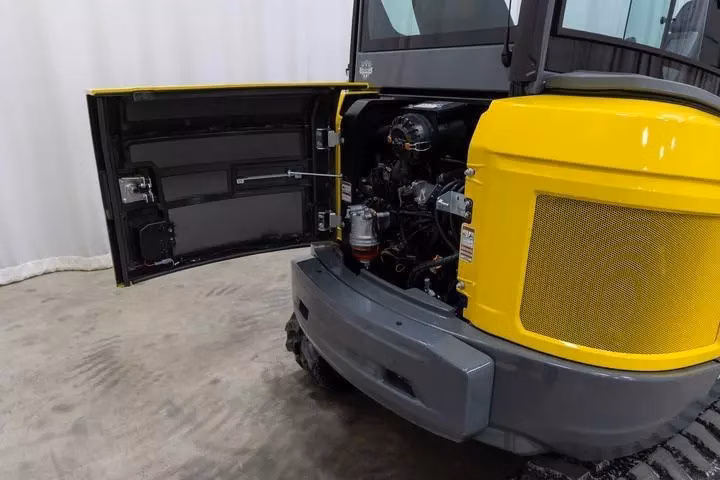

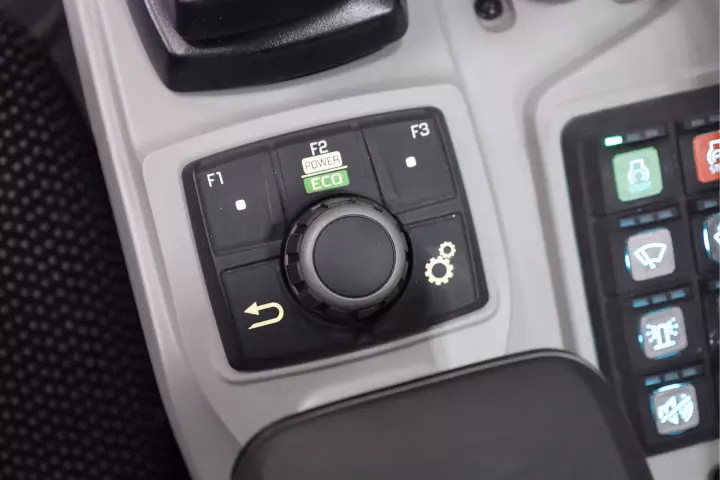

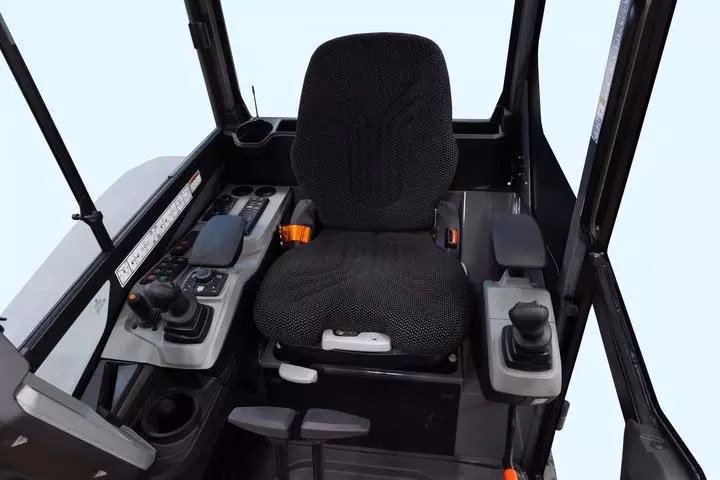

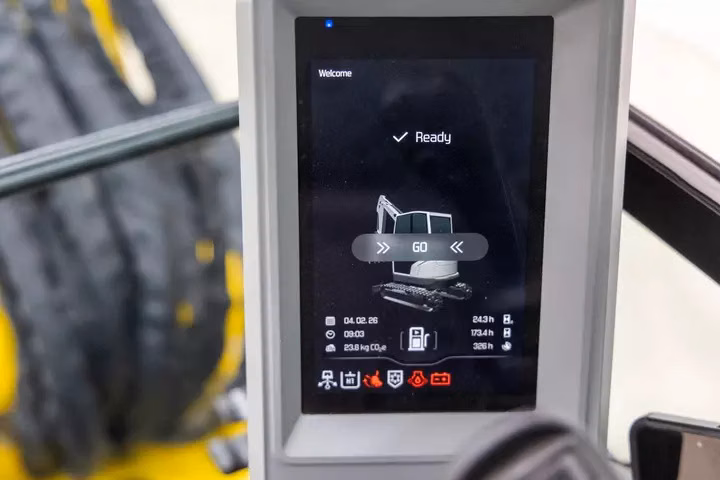

ET40 Tracked Conventional Excavator: Balancing performance and size The ET40 was designed to enhance productivity by providing strong digging performance, smooth hydraulics and a standard dozer blade with float to support faster cycle times and efficient grading on the jobsite. Operator comfort is kept at the forefront with the spacious cab, ergonomic layout of controls and the new touchscreen display allowing for operator customization. All service checkpoints can be quickly accessed behind lockable doors helping minimized downtime and simplifies routine maintenance.
Specifications
Manufacturer
Wacker Neuson
Model
ET40
Year
2027
Category
Excavators
Subcategory
Mini Excavators
Length
201.1 in
Digging depth (max )
134.6 in
Width
68.9 in
Height
98.3 in

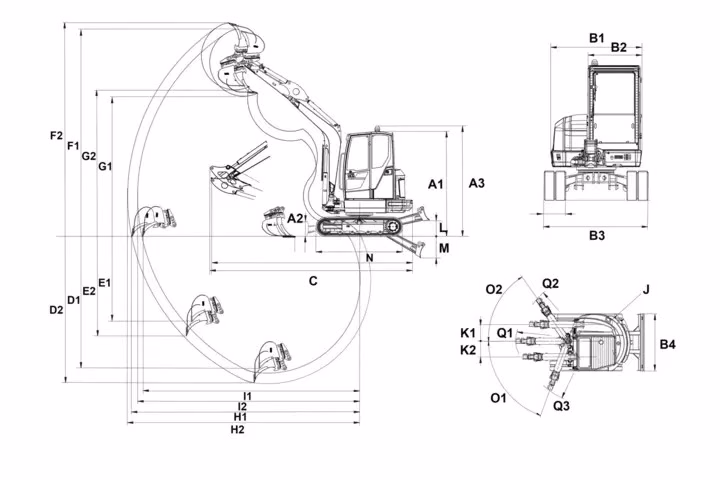

A1 Height with cab Standard Dozer Blade
98.4 in
A1 Height with cab Angle Dozer Blade
98.4 in
A2 Height of dozer blade Standard Dozer Blade
15.3 in
A2 Height of dozer blade Angle Dozer Blade
14.4 in
A3 Total height of cabin with rotating beacon Standard Dozer Blade
104.7 in
A3 Total height of cabin with rotating beacon Angle Dozer Blade
104.7 in
B1 Width of upper carriage Standard Dozer Blade
58.1 in
B1 Width of upper carriage Angle Dozer Blade
58.1 in
B2 Width of cab Standard Dozer Blade
38.5 in
B2 Width of cab Angle Dozer Blade
38.5 in
B3 Width travel gear Standard Dozer Blade
68.8 in
B3 Width travel gear Angle Dozer Blade
68.8 in
B4 Width of dozer blade Standard Dozer Blade
70 in
B4 Width of dozer blade Angle Dozer Blade
70 in
C Transport length short shovel arm Standard Dozer Blade
201.7 in
C Transport length short shovel arm Angle Dozer Blade
201.7 in
C Transport length long shovel arm Standard Dozer Blade
201.7 in
C Transport length long shovel arm Angle Dozer Blade
201.1 in
D1 Digging depth max , short shovel arm Standard Dozer Blade
132.1 in
D1 Digging depth max , short shovel arm Angle Dozer Blade
132.1 in
D2 Digging depth max , long shovel arm Standard Dozer Blade
142 in
D2 Digging depth max , long shovel arm Angle Dozer Blade
142 in
E1 Piercing depth max , short shovel arm Standard Dozer Blade
88.1 in
E1 Piercing depth max , short shovel arm Angle Dozer Blade
88.1 in
E2 Piercing depth max , long shovel arm Standard Dozer Blade
97.1 in
E2 Piercing depth max , long shovel arm Angle Dozer Blade
97.1 in
F1 Piercing height max , short shovel arm Standard Dozer Blade
203.8 in
F1 Piercing height max , short shovel arm Angle Dozer Blade
203.8 in
F2 Piercing height max , long shovel arm Standard Dozer Blade
210 in
F2 Piercing height max , long shovel arm Angle Dozer Blade
210 in
G1 Dumping height max , short shovel arm Standard Dozer Blade
138.4 in
G1 Dumping height max , short shovel arm Angle Dozer Blade
138.4 in
G2 Dumping height max , long shovel arm Standard Dozer Blade
144.5 in
G2 Dumping height max , long shovel arm Angle Dozer Blade
144.5 in
H1 Digging radius max , short shovel arm Standard Dozer Blade
221.6 in
H1 Digging radius max , short shovel arm Angle Dozer Blade
221.6 in
H2 Digging radius max , long shovel arm Standard Dozer Blade
226.3 in
H2 Digging radius max , long shovel arm Angle Dozer Blade
226.3 in
I1 Max reach at ground level (short shovel arm) Standard Dozer Blade
212.7 in
I1 Max reach at ground level (short shovel arm) Angle Dozer Blade
212.7 in
I2 Max reach at ground level (long shovel arm) Standard Dozer Blade
217 in
I2 Max reach at ground level (long shovel arm) Angle Dozer Blade
217 in
J Tail swing radius Standard Dozer Blade
48.2 in
J Tail swing radius Angle Dozer Blade
48.2 in
J Tail swing radius with tail weight Standard Dozer Blade
51.9 in
J Tail swing radius with tail weight Angle Dozer Blade
51.9 in
K1 Boom offset max (to center of bucket right side) Standard Dozer Blade
34.3 in
K1 Boom offset max (to center of bucket right side) Angle Dozer Blade
34.3 in
K2 Boom offset max (to center of bucket left side) Standard Dozer Blade
23 in
K2 Boom offset max (to center of bucket left side) Angle Dozer Blade
23 in
L Stacking height max (dozer blade above surface) Standard Dozer Blade
16.8 in
L Stacking height max (dozer blade above surface) Angle Dozer Blade
16.8 in
M Digging depth max (dozer blade below surface) Standard Dozer Blade
17.5 in
M Digging depth max (dozer blade below surface) Angle Dozer Blade
17.5 in
N Length travel drive Standard Dozer Blade
87.1 in
N Length travel drive Angle Dozer Blade
87.1 in
O2 Max swivel angle (arm system to the right) Standard Dozer Blade
50 °
O2 Max swivel angle (arm system to the right) Angle Dozer Blade
50 °
Cylinder capacity
95.7 in³
Effective power
43.4 hp
Nominal Engine speed
2,400 1/min
Starter battery Voltage
12 V
Engine type
Diesel engine
Fuel
Diesel EN 590
Engine Manufacturer
Yanmar
Engine Designation
3TN86CT-1DJWN
Operating pressure hydraulics
3,770 psi
Travel speed
3.2 m/H
Traction drive
axial piston motor
