Description

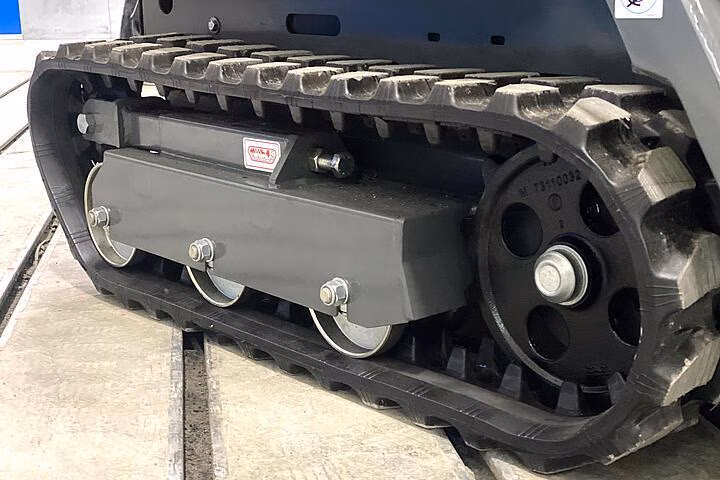

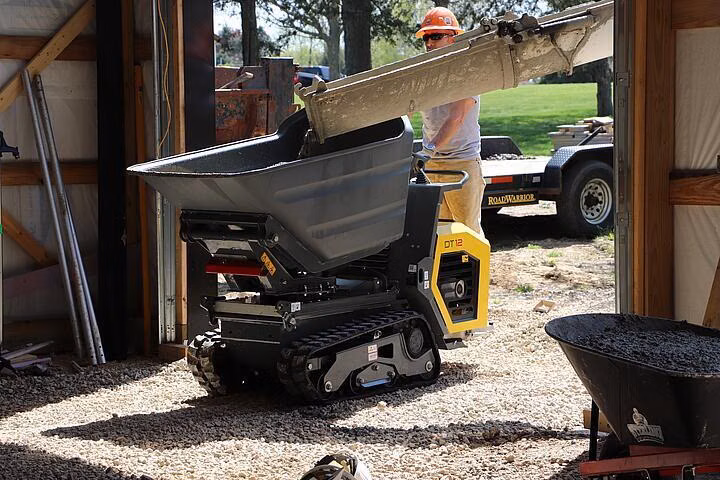

DT12 Track Dumper: Works efficiently everywhere The hydraulically activated and pilot-operated machine provides for overall simple operation, and the hydrostatic drive system make it a comfortable and durable machine for a variety of job site applications . Rubber tracks provide excellent weight distribution and low ground pressure even with a high payload. The extensive selection of skips, a low center of gravity and the suspension-mounted rollers make it an ideal material handler on all types of terrain
Specifications
Manufacturer
Wacker Neuson
Model
DT12
Year
2027
Category
Dumpers
Subcategory
Track Dumpers
Gradeability
0.62
Travel speed
2.6 m/H
Travel speed (Option)
5.6 m/H
Weight
1,653.47 lb
Payload max
2,645.5 lb
Skip capacity levelled
110.4 gal US
Skip capacity heaped
133.4 gal US
Skip
Swivel skip
Effective power
23.1 fps
Nominal Engine speed
3,600 kg/m2s
Length
81.6 "
Width
31.1 "
Height
51.3 "
Height above operator's stand Front tip skip
50.4 in
Height above operator's stand High tip skip
50.4 in
Height above operator's stand Swivel tip skip
50.4 in
Height above operator's stand Front tip skip platform
50.4 in
Width of skip Front tip skip
32.7 in
Width of skip High tip skip
32.7 in
Width of skip Swivel tip skip
30.8 in
Width of skip Front tip skip platform
31.5 in
Width of skip Plastic skip
33.3 in
Width of undercarriage Front tip skip
31.1 in
Width of undercarriage High tip skip
31.1 in
Width of undercarriage Swivel tip skip
31.1 in
Width of undercarriage Front tip skip platform
31.1 in
Width of undercarriage Plastic skip
31.1 in
Total length without footboard Front tip skip
71.8 in
Total length without footboard High tip skip
68.3 in
Total length without footboard Swivel tip skip
77.2 in
Total length without footboard Front tip skip platform
74.1 in
Total length without footboard Plastic skip
81.6 in
Length footboard Front tip skip
15.3 in
Length footboard High tip skip
15.3 in
Length footboard Swivel tip skip
15.3 in
Length footboard Front tip skip platform
15.3 in
Length footboard Plastic skip
15.3 in
Length with self-loading equipment, without footboard Front tip skip
89.6 in
Dumping height max Front tip skip
18.1 in
Dumping height max High tip skip
32.0 in
Dumping height max Front tip skip platform
10.1 in
Dumping height max Plastic skip
23.5 in
Skip height tilted Front tip skip
76.8 in
Skip height tilted High tip skip
82.7 in
Skip height tilted Swivel tip skip
84.8 in
Skip height tilted Front tip skip platform
56.3 in
Skip height tilted Plastic skip
85.8 in
Dumping angle Front tip skip
70 °
Dumping angle High tip skip
83 °
Dumping angle Swivel tip skip
85 °
Dumping angle Front tip skip platform
56 °
Dumping angle Plastic skip
85 °
Rollback angle footboard Front tip skip
14 °
Rollback angle footboard High tip skip
14 °
Rollback angle footboard Swivel tip skip
14 °
Rollback angle footboard Front tip skip platform
14 °
Rollback angle footboard Plastic skip
14 °
Length chain stand Front tip skip
34.5 in
Length chain stand High tip skip
34.5 in
Length chain stand Swivel tip skip
34.5 in
Length chain stand Front tip skip platform
34.5 in
Length chain stand Plastic skip
34.5 in
Track width Front tip skip
7.1 in
Track width High tip skip
7.1 in
Track width Swivel tip skip
7.1 in
Track width Front tip skip platform
7.1 in
Track width Plastic skip
7.1 in
