Description

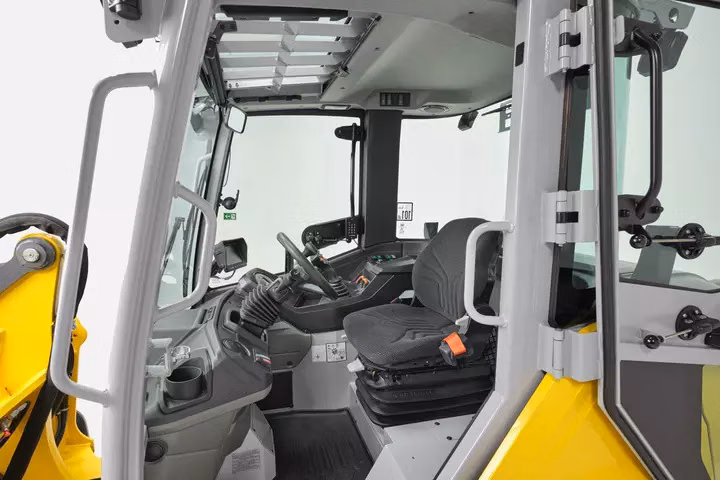

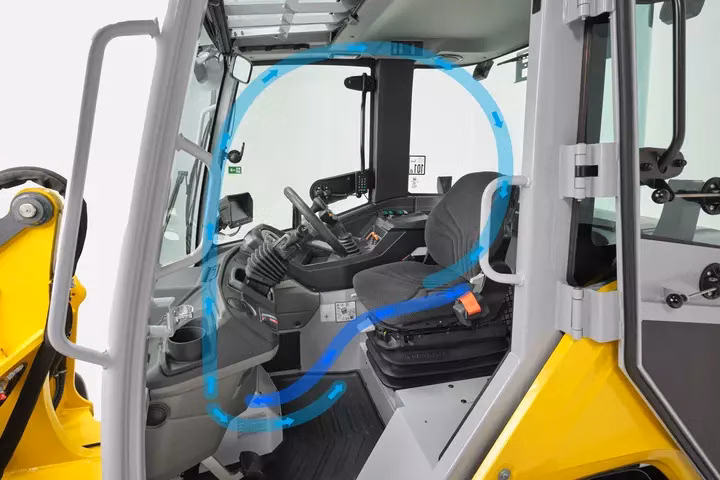

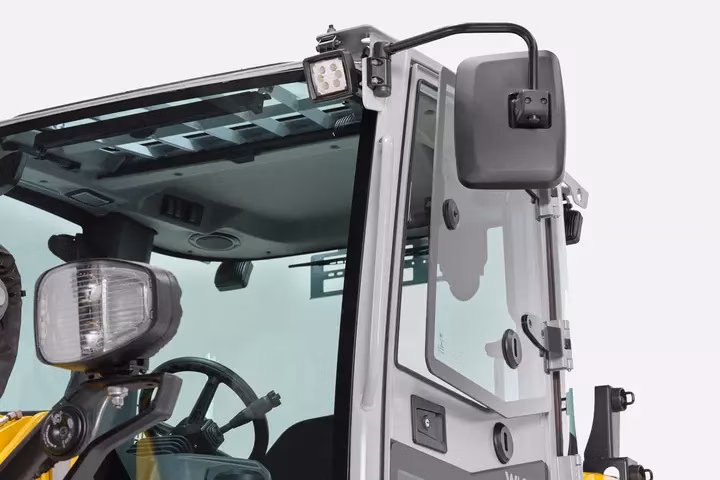

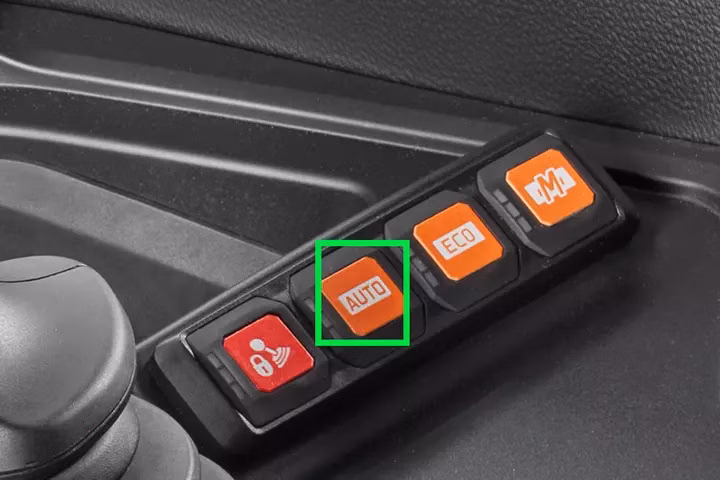

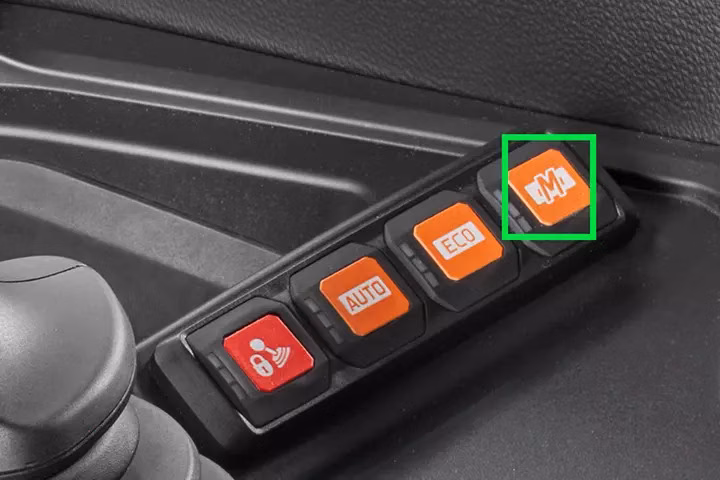

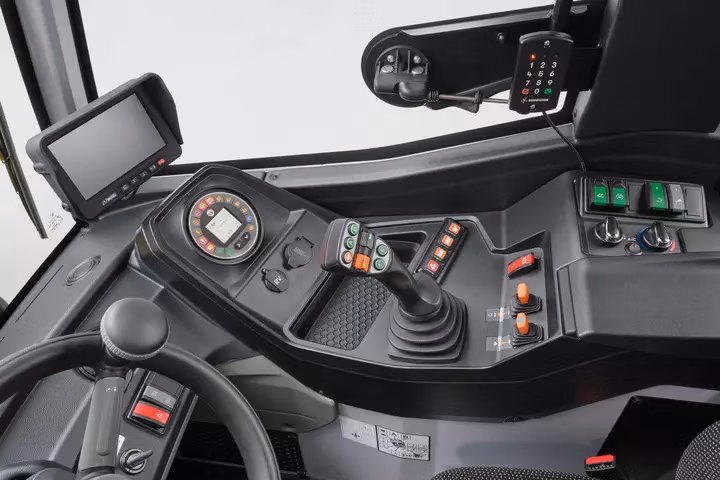

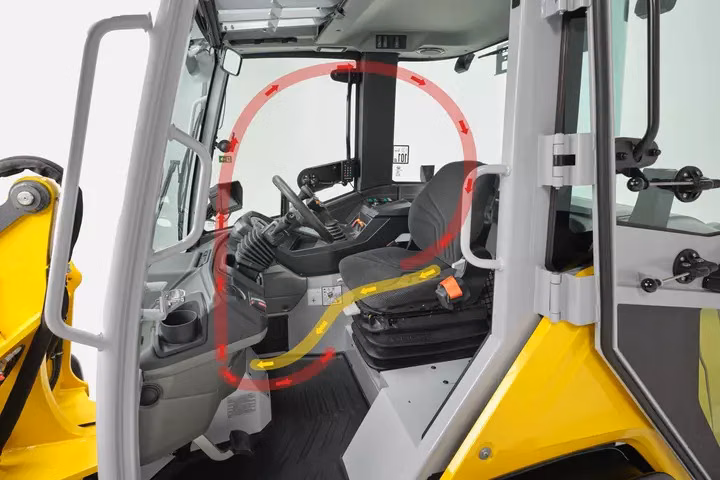

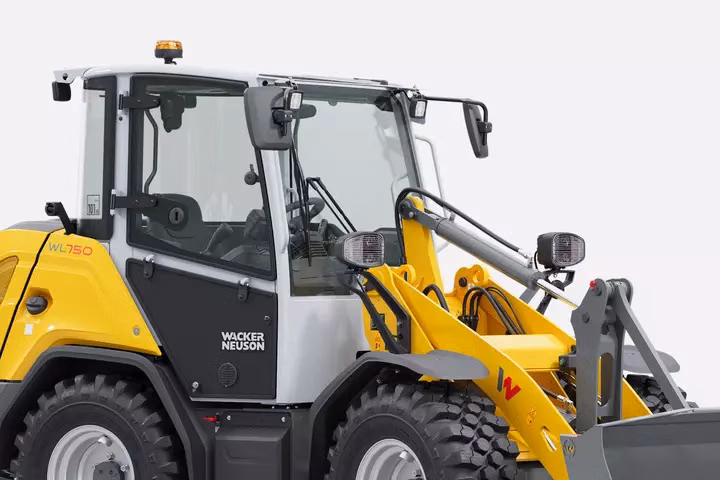

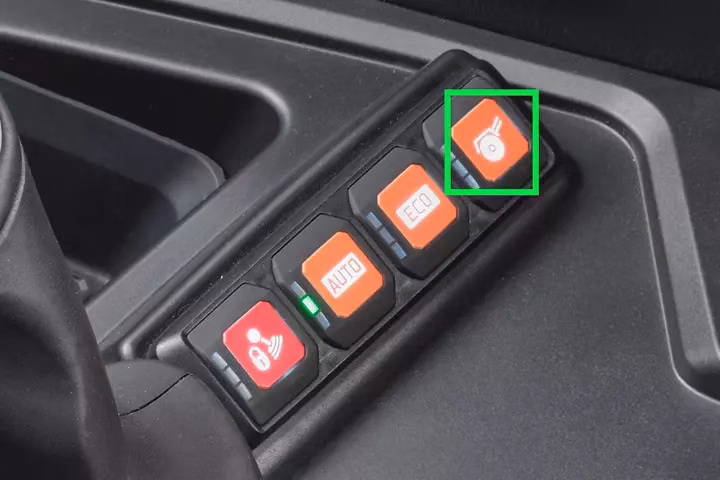

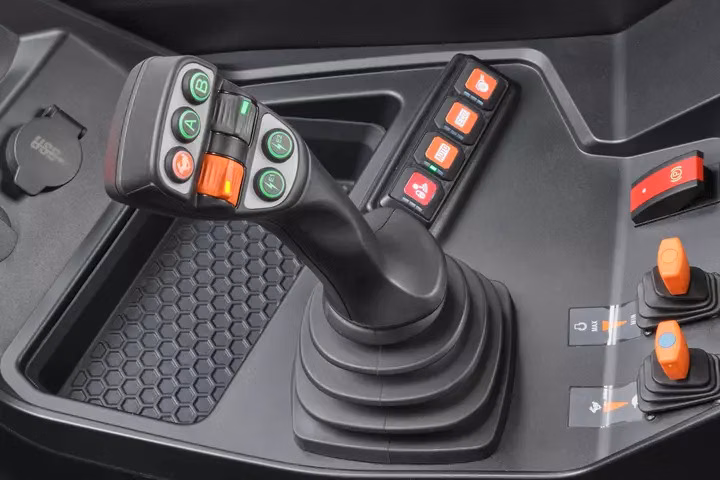

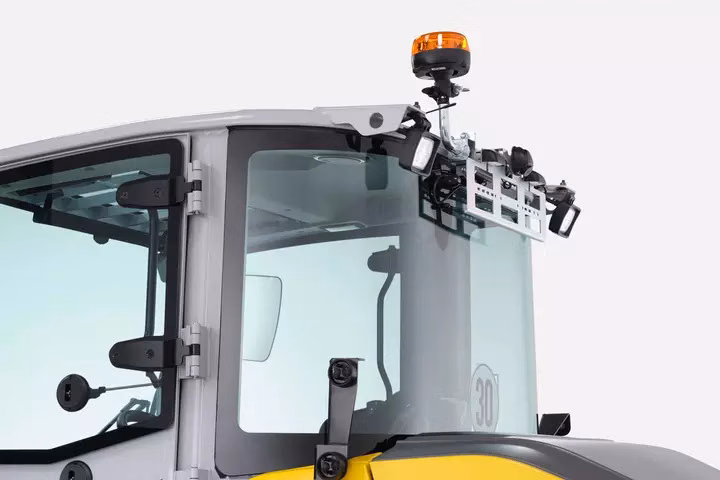

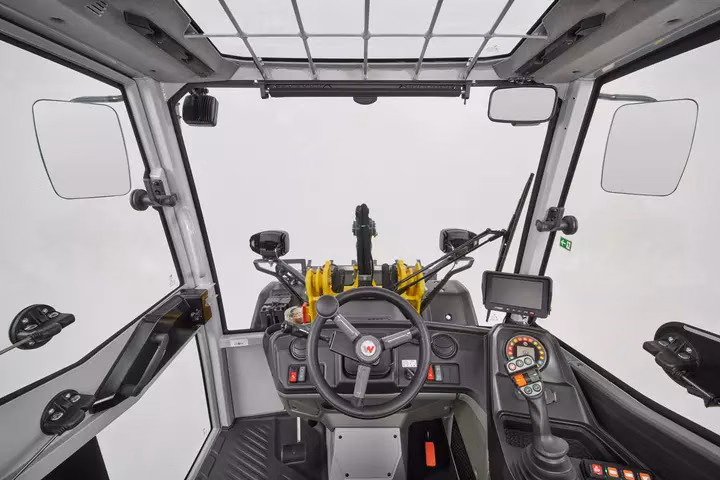

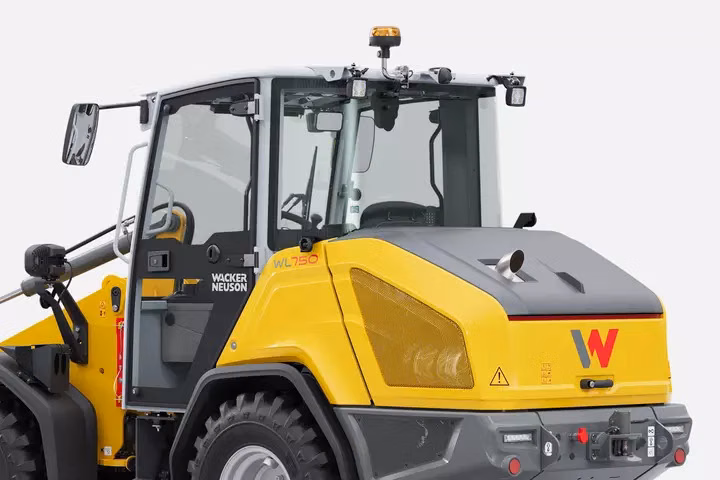

WL750 Wheel loaders: The versatile machine These features characterise the WL750 wheel loader: Comfort cabin with excellent ergonomics and 360° visibility, electronically controlled drive system with various operating modes, sturdy load arm with an optimal view of the attachment.
Specifications
Manufacturer
Wacker Neuson
Model
WL750
Year
2026
Category
Loaders
Subcategory
Wheel Loaders
Total Length
213.4 in
Total Length Without Bucket
181.5 in
Bucket Pivot Point (To Center Of Axle)
35.8 in
Wheel Base
84.6 in
Rear Overhang
56.5 in
Height With Cab
95.1 in
Height With Lowered Operator's Canopy
91.9 in
Height With Operator's Canopy Raised
95.1 in

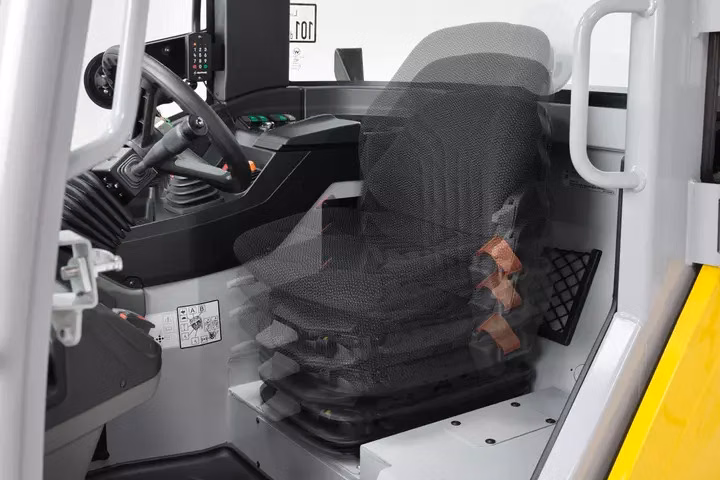

Seat Height
54.7 in
Total Working Height
152.2 in
Bucket Pivot Point (Max Lift Height)
119.7 in
Load-Over Height
109.4 in
Dumping Height
87.8 in
Reach (At M)
21.3 in
Digging Depth
4.5 in
Total Width
57.7 in
Track Width
46.1 in
Ground Clearance
13.2 in
Maximum External Radius
164.0 in
Radius On The Outer Edge
151.6 in
Inner Radius
88.2 in
Drive Hydraulics Working Pressure (Max)
7,252 psi
Work Hydraulics Discharge Volume (Max)
14.95 (18.60) gpm
Work Hydraulics Working Pressure (Max)
3,408 psi
Lifting Cylinder
1
Tipping Cylinder
1

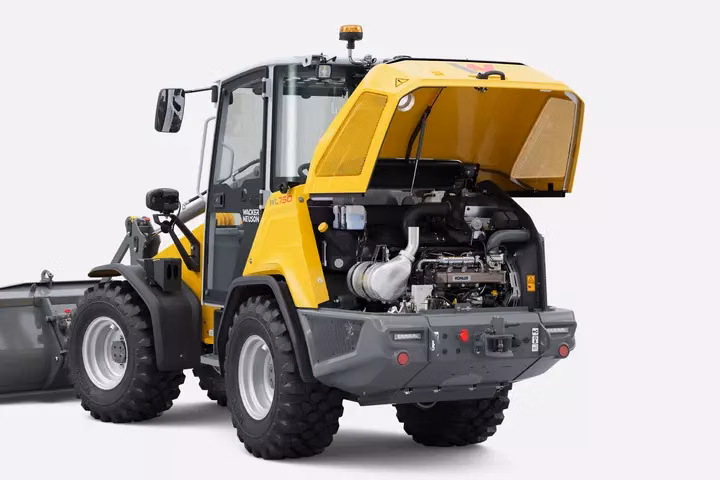

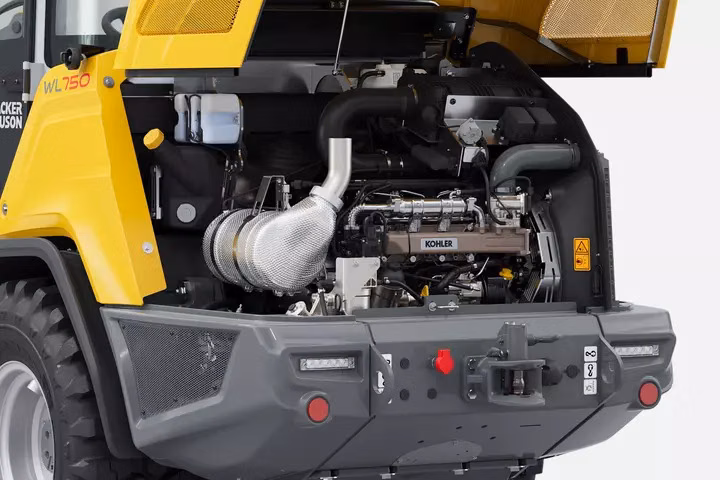

Engine Manufacturer
Kohler
Motor Type
KDI1903TCR
Number Of Cylinders
3
Drive Output
56.3 HP
Max RPM
2,600 rpm
Cylinder Capacity
113.57 in³
Type Of Coolant
Water
Exhaust Standard Level
V
Exhaust Aftertreatment
DOC/DPF
Operating Voltage
12 V
Battery
100 Ah
Alternator
120 A
Bucket Capacity (Standard Bucket)
22.95 ft³
Operating Weight
8,157 - 9,259 lb
Tipping Load With Bucket – Machine Straight
6,460 - 7,694 lb
Tipping Load With Bucket – Machine Pivoted
5,644 - 6,746 lb
Tipping Load With Pallet Fork – Machine Straight
5,269 - 6,283 lb
Tipping Load With Pallet Fork – Machine Pivoted
4,630 - 5,512 lb
Tank Capacity For Fuel
21.13 US gal
Tank Capacity For Hydraulic Oil
8.45 US gal
Type Of Drive
Electronically controlled
Drive Unit
Hydrostatic via transfer gearbox and universal joint shaft
Speed Levels
2

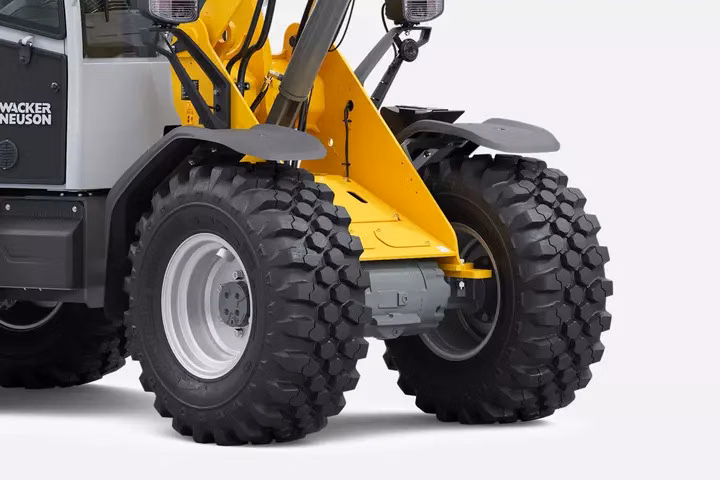

Axle
PA1200

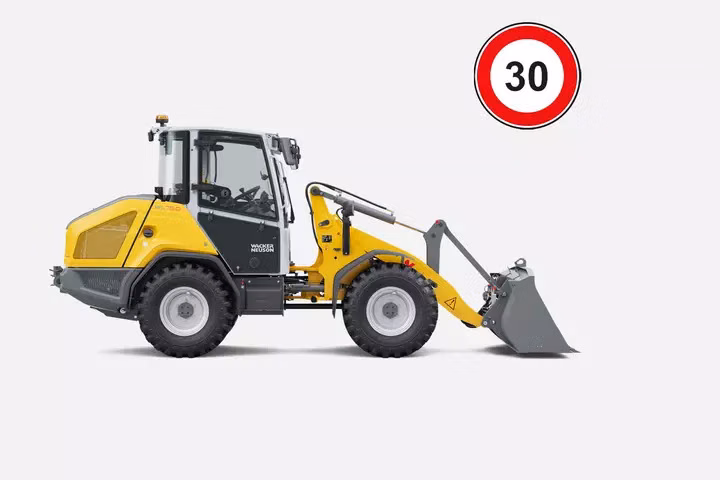

Travel Speed Standard
0-12.43 mph
Travel Speed Option 1
0-18.64 mph
Operating Brake
Drum brake (multi-disk brakes, option)
Parking Brake
Drum brake (mechanical handbrake lever)
Differential Lock
100 % front axle + rear axle

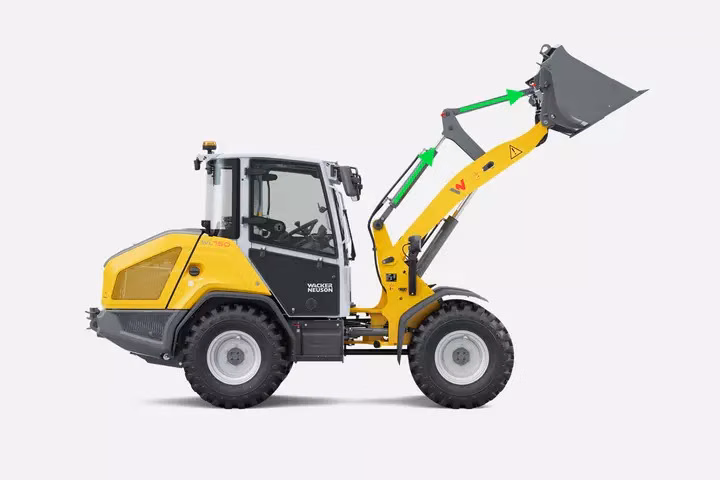

Kinematics Type
P
Quick Change System
Hydraulic
Steering Type
Hydraulically activated articulated pendulum steering
Steering Cylinder
1
Average Sound Power Level LwA (Operator's Canopy)
99.9 dB(A)
Guaranteed Sound Power Level LwA (Operator's Canopy)
101 dB(A)
Specified Sound Pressure Level LpA (Operator's Canopy)
70 dB(A)
Average Sound Power Level LwA (Cabin)
99.9 dB(A)
Guaranteed Sound Power Level LwA (Cabin)
101 dB(A)
Specified Sound Pressure Level LpA (Cabin)
69 dB(A)
Articulation Angle
40°
Rollback Angle At Max Lift Height
45°
Dumping Angle
42°
Rollback Angle On Ground
46°
