Description

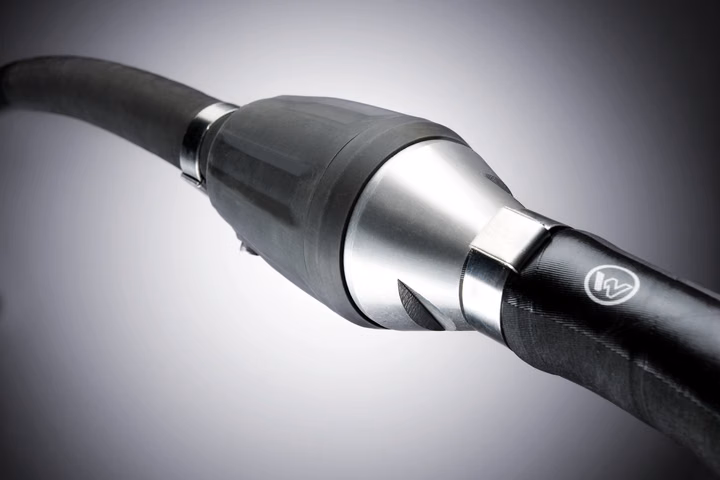

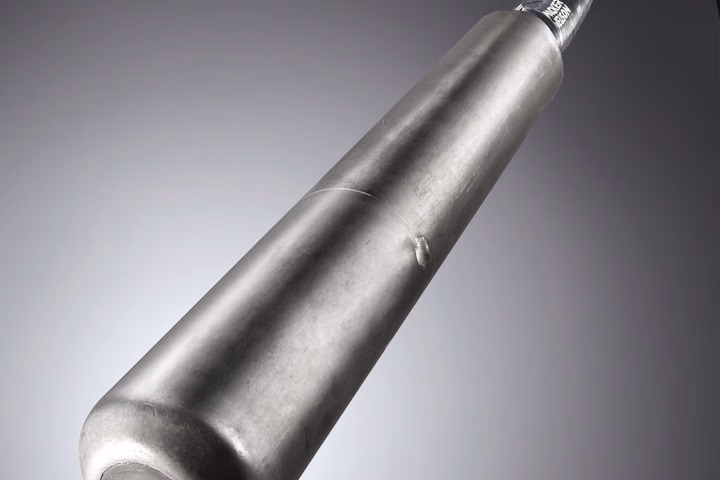

IRFUflex Modular internal vibrator: Maximum flexibility with the modular internal vibrator systemThe modular, high-frequency IRFUflex internal vibrator series offers the option of combining head components in different sizes with a converter component. As a result, you’re always prepared for the widest variety of tasks on the construction site and can quickly and easily retrofit if there is wear. The sturdy coupling point can be operated with a few easy steps. The IRFUflex is a version of the IRFU series and is a high-performance internal vibrator designed for professional long-term application to satisfy high expectations for concrete consolidation results.
Specifications
Manufacturer
Wacker Neuson
Model
IRflex60/120/10hr
Year
2026
Category
Power Equipment
Subcategory
Internal Vibrators
Nominal current
3.3 A
Nominal voltage
220 V
Nominal frequency
200 Hz
Nominal power [P]
1.05 KW
Phase
3 ~
Weight
39.9 lb
Kind of plug
Quickflex
Protection class
I / Protective earthing
Degree of protection
IP67
Nominal current One
12 A
Nominal voltageOne
120 V
Nominal frequencyOne
50 - 60 Hz
Nominal power [S]
1.44 kVA
Output current
3.5 A
Output voltage
220 V
Output frequency
200 Hz
Phase One
1 ~
Output Phase
3 ~
Output Nominal power [S]
1.33 kVA
Weight One
20.72 lb
Number of Sockets
1,0
Kind of plug One
NEMA 5 - 15P
Receptacle Type
Quickflex
Head diameter/-diagonal
2.4 "
Length Hose
32.8 Foot
Length
13.8 "
Width
3.5 "
Height
3.9 "
Length Cable
49.2 Foot
