Description

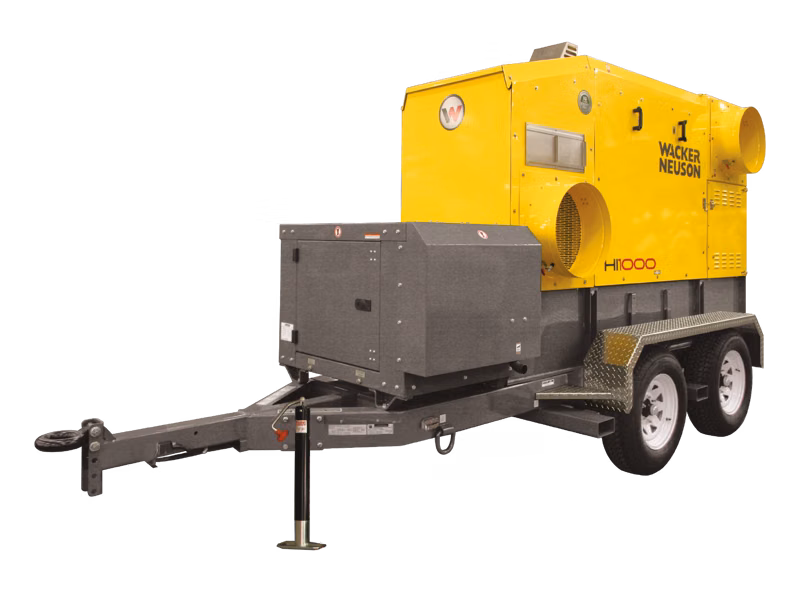

HI1000 Indirect Fired Air Heaters: large air heater for the harshest applications The HI1000 is Wacker Neuson's highest capacity indirect fired air heater. Available with or without a fuel tank. For remote applications, our DGM version includes a custom extended service genset. All versions are ETL certified.
Specifications
Manufacturer
Wacker Neuson
Model
HI1000 (5100049274)
Year
2026
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Nominal frequency
60 Hz
Air flow rate
7,569.2 cfm
Temperature difference
134.6 - 32 °F
Blower Type
Centrifugal blower
Static Pressure (Blower)
498 Pa
Efficiency (Diesel)
83 %
Operating weight
3,794.2 lb
Dry Weight
2,544.1 lb
Phase
1 ~
Temperature monitor
digital
Run Time (75 % Prime Load)
37.5 hrs
Fuel Tank capacity
190 gal US
Utilizable tank capacity
172 gal US
Fuel Consumption no genset
6.2 GPH US
Fuel Consumption with genset
6.4 GPH US
Run Time (100 %)
27.5 hrs
Lift Bail - quantity
1.0
Air outlet adapter
2 x 406.4 mm
Air inlet size
2 x 508.0 mm
Length
119.4"
Width
46.7"
Height
82.2"
Duct Length max, 3x12" Supply Adapter
98.4 Foot
Duct Length max one, 2x16" Supply Adapter
98.4 Foot
Duct Length max two, 1x20" Supply Adapter
200.1 Foot
Duct Length max, 1x20" Return Adapter
49.2 Foot
Length for shipping
128.7"
Width for shipping
41"
Height for shipping
83.2"
