Description

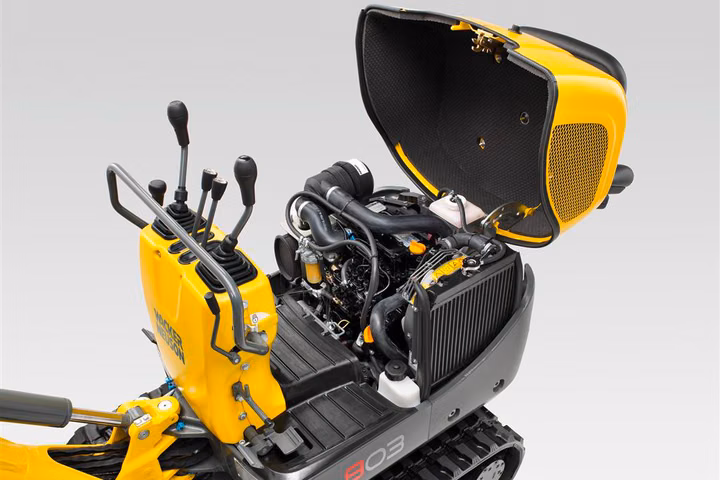

The 803 is the smallest Wacker Neuson excavator and is ideally suited for demolition and excavating in tight spaces. Its compact size, at just 27.5 in/700 mm wide, makes it ideal for work in buildings. The rubber tracks do not damage floors and it can easily drive through interior doors. The 803 features foldable ROPS compliant with TOPS and ROPS regulations. Hydraulic system features twin pump and hydraulic oil cooler. Mechanical joystick controls and ISO/SAE control pattern changeover. Two-way auxiliary hydraulics with non-pressurized return to tank.
Specifications
Manufacturer
Wacker Neuson
Model
803
Year
2026
Category
Excavators
Subcategory
Tracked Conventional Tail Excavators
Arm displacement to centre of bucket, left side
11.1 in
Arm displacement to centre of bucket, right side
9.6 in
Biting force max
1,012 lbf
Boom slewing radius
42.7 in
Breakout force max
2,001 lbf
Cabin - specified sound pressure level LpA
77 dB(A) LpA
Chain width
7.1 in
Digging depth max
69.4 in
Digging radius max
121.7 in
Dump height max
79.2 in
Dumping height
79.2 - 80.1 in
Duty pump
2 gear pumps
Height
1,427 mm
Insertion depth
52 in
Insertion height
112.7 in
Lift height - Above ground
7.8 in
Operating pressure Slewing gear
1,015 psi
Range
119.2 in
Rear swivel radius
29.4 in
Scraping depth - Below ground
7 in
Sound level (LwA) acc to 2000/14/EC
93 dB(A)
RPM / speed Superstructure
8 rpm
Tank capacity
11 US qt
Travel speed
1.1 mph
Turning angle - Boom system to the left
55 °
Turning angle - Boom system to the right
56 °
Width
860 mm
Width min
700 mm
Ground clearance
5.2 in
Height
56.2 in
L x W x H
111.3 x 27.6 x 89 in
Length - Track
1,220 mm
Operating weight
2,269 - 2,401 lb
Shipping weight min
932 kg
Transport length
111.3 in
Width
33.9 in
Width min
27.6 in
