Description

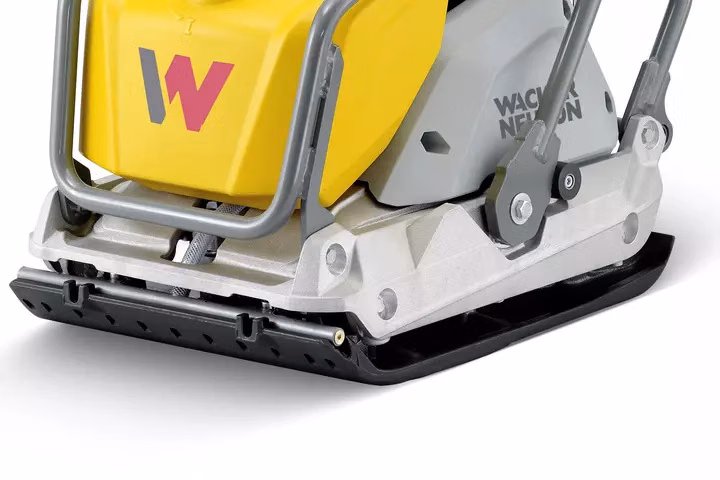

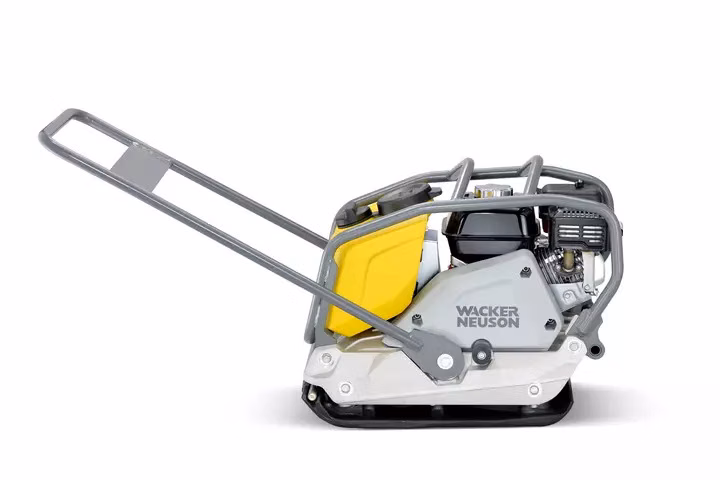

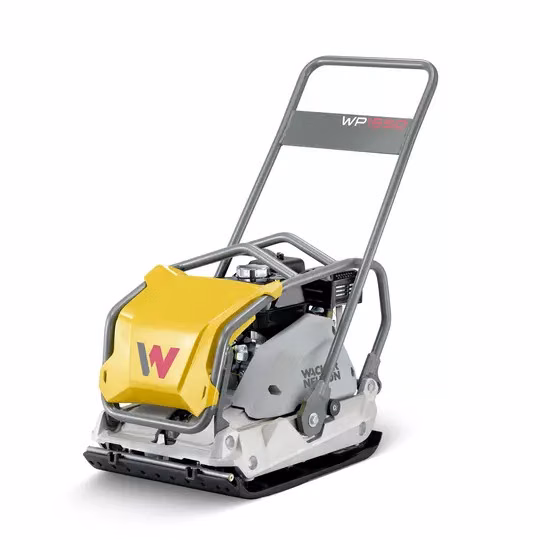

WP Single-direction vibratory plates: compaction pros The WP vibratory plate series are the high-performance pros for the compaction of asphalt and light mixed soils as well as compacting over interlocking paving stones. Because of the center-mounted control handle and specially shaped base plate, the WP plates can be easily maneuvered and turned. The heavy-duty design is ideally suited for professional use when compacting mixed soil subbases, walkways, roads and parking lots and for asphalt finishes. Using the wheel set (accessory), the WP plates can be easily moved around the job site by one person.
Specifications
Manufacturer
Wacker Neuson
Model
WP1550A
Year
2026
Category
Compactors
Subcategory
Vibratory Plates
Engine
Honda GX160-UH2-QC-9-SD
Nominal Engine speed
3,600 1/min
Cylinder capacity
9.9 Inch3
Fuel consumption
0.2 GPH US
Tank capacity
1 gal US
Operating power
3.9 PS
Effective power
4.8 hp
Centrifugal force
3,372 lbf
Area capacity
9,364.7 ft2/h
Forward Running
1.6 fps
Gradeability
36.4 %
Operating weight
196.2 lb
HAV summation (average value)
19.4 ft/s2
HAV summation (Standard)
EN 500-4
Length Baseplate
22.9 "
Width
19.7 "
Width Baseplate
19.7 "
Height
37.9 "
Height Cover frame
21.7 "
Thickness Baseplate
0.4 "
Ground clearance
21.7 "
