Description

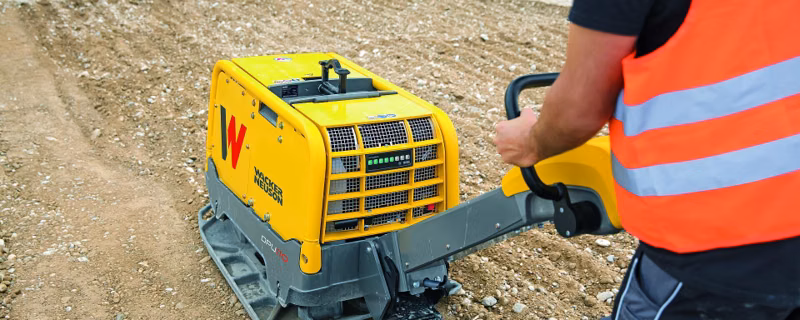

> 600 kg Heavy-weight reversible vibratory plates: Uncompromising performance with high operating comfortThe heavyweight reversible vibratory plates offer an uncompromisingly strong compaction performance with compact dimensions and a high level of operating comfort. Therefore, they are the compaction machine of choice for demanding compaction work such as road construction. The water-cooled engine provides reliable high performance. Many functional details based on the most modern technologies ensure efficiency on the job and make daily maintenance easier. The product range consists of high-performance, heavy-duty vibratory plates with centrifugal forces ranging from 80 to 130 kilonewtons.
Specifications
Manufacturer
Wacker Neuson
Model
DPU90Lem770 US
Year
2026
Category
Compactors
Subcategory
Vibratory Plates
Centrifugal force
20,233 lbf
Area capacity
14,918.9 ft2/h
Gradeability
34
Effective power
14.3 hp
Nominal Engine speed
3,350 1/min
HAV summation (average value)
8.2 ft/s2
HAV summation (Standard)
EN 500-4
Length Baseplate
46.5
Width
38.2
Width Baseplate
38.2
Height
60.7
Height Cover frame
32.4
Thickness Baseplate
0.6
Operating weight
1,699.8 lb
Ground clearance
32.7
